Premium Choice 2026

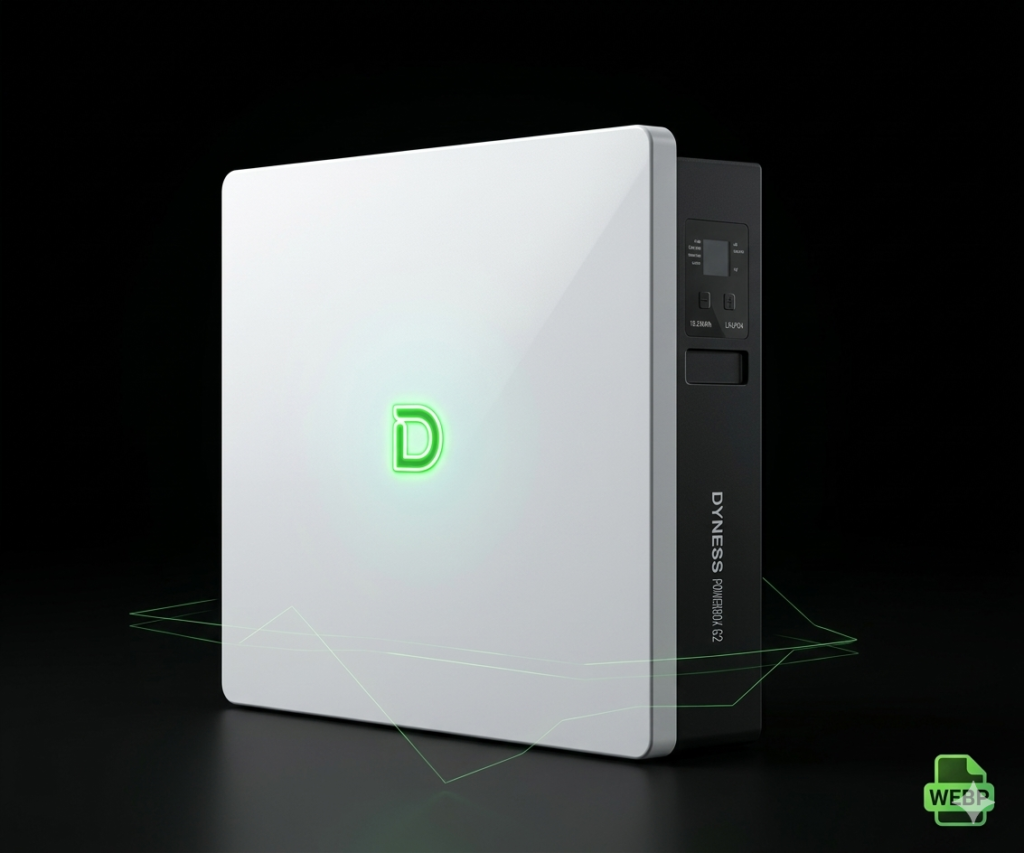

Dyness PowerBox G2 (10.24kWh)
The Ultimate LiFePO4 Smart Energy Storage Solution
Product Overview
Dyness PowerBox G2 aik high-performance low-voltage (48V) battery hai jo khususi tor par baray gharon aur commercial units ke liye design ki gayi hai. Iski **10.24kWh** capacity ka matlab hai ke yeh aik hi unit mein aapke ghar ka AC, Fridge, aur tamam heavy load asani se sambhaal sakti hai.
Key Highlights:
- Built-in Fire Suppression: Is mein automatic fire extinguisher laga hota hai jo kisi bhi abnormal temperature par 5 seconds mein active ho jata hai.
- IP65 Waterproof: Aap isay ghar ke bahar (Outdoor) bhi install kar sakte hain.
- Slim Design: Sirf 6.5 inch motai (thickness) ke sath yeh deewar par bohat kam jagah leti hai.
- Unlimited Cycles: 10 saal ki warranty aur behtreen cell quality.
Rs. 525,000 – 580,000
✅ In Stock (Lahore, Karachi, Islamabad)
Detailed Technical Specifications
| Parameter | Specification Details |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Energy | 10.24 kWh |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200 Ah |
| Max Discharge Power | 10.24 kW (1C Rate) |
| Peak Discharge Current | 300A (for 2 minutes) |
| Depth of Discharge (DoD) | 95% |
| IP Rating | IP65 (Outdoor/Indoor) |
| Weight | 98 kg (Approx.) |
| Dimensions (W*D*H) | 710 * 165 * 640 mm |
| Communication | CAN / RS485 / WiFi (Built-in) |
Approved Inverter Brands
Related Dyness Batteries
Dyness Battery Price in Pakistan
Dyness DL5.0 Lithium Battery
Dyness HE 5.12 Lithium Battery
Solar Battery Price in Pakistan
Lithium Battery Price in Pakistan
Need Help About Dyness PowerBox G2?
If you need price details, solar system compatibility or installation guidance
for the Dyness PowerBox G2 lithium battery, you can contact
our solar experts on WhatsApp for instant support.
Dyness PowerBox G2 vs Huawei Luna vs Pylontech Force L2
| Feature | Dyness PowerBox G2 | Huawei Luna2000 (10kWh) | Pylontech Force L2 (10.6kWh) |
| Technology | LiFePO4 (Low Voltage) | LiFePO4 (High Voltage) | LiFePO4 (Low Voltage) |
| Capacity | 10.24 kWh | 10.0 kWh | 10.65 kWh |
| Peak Power | 10.24 kW (1C Rate) | 5.0 kW (Standard) | 5.0 kW |
| Protection | IP65 + Fire Suppression | IP66 | IP55 |
| Parallel Units | Up to 50 Units | Up to 3 Towers | Up to 4 Units |
| Cycle Life | 8,000+ Cycles | 5,000 – 6,000 Cycles | 6,000+ Cycles |
| Compatibility | Universal (Solis, Deye, etc.) | Huawei Inverters Only | Limited Brands |
| Approx. Price | Rs. 520,000+ | Rs. 800,000+ | Rs. 600,000+ |
The Ultimate Comparison
| Feature | Dyness PowerBox G2 | Huawei Luna2000 | Pylontech Force L2 |
|---|---|---|---|
| Energy Capacity | 10.24 kWh | 10.0 kWh | 10.65 kWh |
| Discharge Rate | 1C (Max Power) | 0.5C | 0.5C |
| Safety Feature | Built-in Fire Extinguisher | Internal Fuse | Standard BMS |
| Inverter Compatibility | Wide (Universal) | Huawei Only | Medium |
Inverter Configuration Guide (Solis & Deye)
Dyness batteries ko behtreen performance ke liye sahi settings par chalana zaroori hai. Niche di gayi steps ko follow karen:
Deye / Nitrox Settings
- Mode: Lithium
- Protocol: 00 (CAN)
- Max Charge: 100A (for G2)
- Comm Port: BMS Port
Solis Settings
- Battery Select: Dyness
- Control: Self-Use Mode
- Discharge SOC: 20%
- Comm Port: CAN Port
⚠️ Pro Tip: Hamesha battery pehle ON karen aur Inverter baad mein, taake BMS communication sahi se handshake kar sakay.
