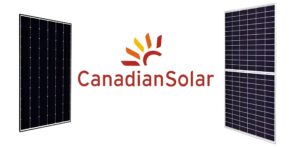

Canadian N Type Module

Canadian N Type Module: Comprehensive Overview

Technology Introduction

Canadian Solar N-Type modules represent the next generation of solar technology, utilizing N-Type silicon substrate instead of the industry-standard P-Type. This fundamental material shift enables higher efficiency, better performance in real-world conditions, and superior long-term reliability compared to conventional PERC panels.

---

Canadian N Type Module Product Series Overview

1. HiKu7 (N-Type TOPCon Monofacial Series)

• Power Range: 590W to 625W+

• Efficiency: Up to 23.5%

• Key Feature: Optimized for front-side performance

• Applications: Standard utility-scale and commercial projects where bifacial gain isn’t practical

2. TOPBiHiKu7 (N-Type TOPCon Bifacial Series)

• Power Range: 600W to 705W (industry-leading)

• Efficiency: Up to 24.3%

• Bifaciality Factor: >90% (exceptional rear-side generation)

• Applications: Utility solar farms with high-albedo surfaces, commercial rooftops with reflective membranes

3. HiHero (N-Type HJT Series)

• Power Range: 440W to 465W (residential focus)

• Efficiency: Up to 23.0%

• Technology: Heterojunction (HJT) – premium residential

• Applications: High-end residential, space-constrained commercial

---

Core Advantages of Canadian N Type Module

Performance Superiority

• Higher Efficiency: 23-24.3% vs. 21-22% for premium P-Type

• Better Temperature Coefficient: -0.29%/°C vs. -0.34%/°C for PERC (less power loss in heat)

• Superior Low-Light Performance: Enhanced dawn/dusk and cloudy day output

• Zero LID (Light-Induced Degradation): Eliminates the 1-2% initial power drop seen in P-Type

Canadian N Type Module Long-Term Reliability

• Lower Degradation Rate:

  • Year 1: <1% vs. 2% for PERC

  • Year 30: ~87.4% remaining vs. ~84% for PERC

• Better PID Resistance: Superior resistance to Potential Induced Degradation

• Enhanced Durability: Robust against micro-cracks and mechanical stress

Canadian N Type Module Financial Benefits

• Higher Energy Yield: 3-8% more kWh per kWp installed

• Lower LCOE: Reduced Levelized Cost of Energy over system lifetime

• Space Efficiency: More power per square meter (crucial for constrained sites)

• Better ROI: Faster payback despite premium pricing

---

Technology Comparison: N-Type vs. P-Type

---

Canadian N Type Module Target Applications by Market Segment

Utility-Scale Solar Farms

• Recommended: TOPBiHiKu7 600W-705W

• Benefits: Maximum power density, lowest BOS costs, superior ROI

• Ideal Conditions: High albedo surfaces (sandy soil, white gravel, snow)

Canadian N Type Module Commercial & Industrial

• Recommended: HiKu7 590W-625W (monofacial) or TOPBiHiKu7 (bifacial)

• Benefits: Higher energy yield in limited space, better commercial electricity offset

• Typical Installations: Factory rooftops, warehouses, carports

Residential Premium Market

• Recommended: HiHero HJT Series 440W-465W

• Benefits: Maximum power from limited roof space, aesthetic appeal, long warranty

• Target: High-end homes, eco-conscious homeowners

---

Warranty & Reliability

Standard Warranties

• Product Warranty: 12-15 years (extendable to 25-30 years)

• Performance Warranty: 30-year linear

  • Year 1: 98.5% of rated power

  • Year 30: 87.4% of rated power

• Degradation Rate: <0.4% annually after first year

Quality Certifications

• IEC 61215, IEC 61730 (safety and performance)

• UL 61730 (US market)

• Salt mist, ammonia, and PID resistance certifications

• 3rd party bankability ratings (Bloomberg Tier 1)

---

Canadian N Type Module Market Position & Competition

Canadian Solar’s Competitive Edge

1. Vertical Integration: Controls silicon, wafer, cell, and module production

2. Manufacturing Scale: 8+ GW N-Type capacity (growing rapidly)

3. Proven Track Record: 30+ GW shipped globally

4. Cost Structure: Among lowest cost/Watt in premium segment
