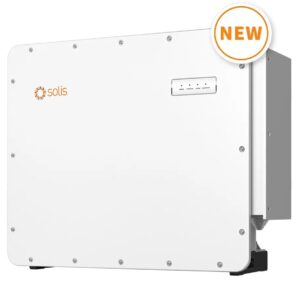

Solis 150KW On-Gird Inverter Model S6-GC3P150K07-NV-ND
The S6-GC3P150K07-NV-ND three-phase string inverter is the representative product of the new generation of Solis C&I solutions. With an MPPT current of up to 48A, it is perfect for all 182/210mm high-power PV modules and supports more than a 150% DC/AC ratio, bringing more yield. It features intelligent DC breaking and intelligent AC-DC terminal temperature monitoring functions to improve system safety performance. Combined with the rich online O&M tools provided by the Solis cloud platform, it can effectively reduce O&M costs, simplify O&M, and improve system efficiency. This inverter provides more efficient, safe, intelligent, and economical high-power inverter solutions for C&I PV systems.
Solis Three Phase Grid-Tied Inverter
Leading Features
- Safety, Intelligent Prevention
- AI-based millisecond arc protection (AFCI)
- Real time PV grounding detection and protection
- Intelligent AC and DC terminal temperature sensing detection
- Integrated meteorological equipment, intelligent system inefficiency warning
- Arc fault and RSD (Rapid Shutdown) co-operation for improved fire safety (optional)
- Innovation, Never Stops
- Dual independent RS485 ports, perfect adaptation to third-party integration
- Master-slave export power control solution, flexible and fast control, support 10 units in parallel
- Supports single and multiple genset applications without the need for an external genset controller
- The industry’s first master-slave export power control+ three-phase unbalanced output control, allocate each phase power on demand, and flexibly compatible with various power grids (optional)
Solis 150KW On-Gird Inverter S6-GC3P150K07-NV-ND 150KW Inverter – Complete Overview
Key Specifications
Parameter | Specification |
---|---|
Rated Power | 150KW (3-Phase) |
Max Efficiency | 98.7% (European) |
MPPT Channels | 7/21 (Independent tracking) |
DC Input Voltage | 1100V (600-1100V operating range) |
AC Output | 380V/400V/480V (3-Phase, grid-tied) |
IP Rating | IP65 (Dustproof/Waterproof) |
Cooling | Smart fan + heatsink |
Dimensions | 1000×700×300mm (Wall-mounted) |
Weight | 120kg |
Key Features for Pakistani Market
-
Industrial-Grade Performance
-
Handles 200-250KWh daily output (ideal for factories, shopping malls).
-
7/21 MPPT trackers optimize multiple solar arrays (shade tolerance).
-
-
Net Metering Ready
-
Compliant with KE/NEPRA/IESCO regulations for grid-tied systems.
-
-
Durability
-
-30°C to 60°C operating range (suitable for all Pakistani climates).
-
Surge protection against voltage fluctuations.
-
-
Smart Monitoring
-
Remote management via SolisCloud/Solarman app (real-time alerts).
-
Price in Pakistan
-
Inverter Only: Call for Prices
-
Full 150KW System (Panels + Inverter + Structure): PKR 8M-12M
Installation Requirements
-
Grid Approval: NEPRA net metering license required.
-
Space: Wall-mounted (needs ventilation clearance).
-
Wiring: 70mm² copper cables (3-phase).
FAQs (Pakistan-Specific)
Q: Can it run without batteries?
A: Yes, purely on-grid (batteries optional for backup).
Q: How many panels needed?
A: ~214x 705W panels (150KW system for optimal performance).
Q: Best for which cities?
A: Karachi/Lahore/Islamabad (approved by all major DISCOs).
Q: Maintenance cost?
A: ~PKR 50,000/year (dust cleaning + firmware updates).
