growatt 5kw:

Efficient Power Management with a 5kW Inverter

What Can a 5kW Inverter Power?” Efficiently managing the power of your 5kW inverter requires strategic planning and mindful use of electrical devices. Here are some tips to help you make the most of your 5kW inverter’s capacity:

  1. Prioritize Essential Devices: Identify and prioritize essential appliances. Focus on powering critical items first, such as refrigerators, lights, and communication devices.
  2. Understand Power Requirements: Know the power requirements of your appliances. Opt for energy-efficient models and be aware of their individual power consumption to make informed decisions.
  3. Simultaneous Small Loads: Run multiple smaller appliances simultaneously to maximize the inverter’s capacity. For example, you can charge devices, run LED lights, and power a laptop concurrently.
  4. Cycle Larger Appliances: Cycle the use of larger appliances like microwave ovens, electric heaters, or power tools. Avoid running them simultaneously to prevent overloading the inverter.
  5. Time-Use Strategically: Time your appliance usage strategically. Consider running high-power devices during peak sunlight hours when your solar panels are generating the most electricity.
  6. Monitor Battery Levels: If your inverter is connected to a solar battery system, monitor battery levels regularly. Ensure the batteries are adequately charged and consider storing excess energy for later use.
  7. Consider Smart Appliances: Invest in smart appliances that allow for more flexible scheduling and energy management. Some appliances can be programmed to operate during periods of abundant sunlight.
  8. Implement Energy-Saving Practices: Adopt energy-saving practices, such as turning off lights and unplugging chargers when not in use. These small steps can contribute to overall energy efficiency.
  9. Educate Household Members: Educate your family members about the inverter’s capacity and encourage responsible energy use. Create awareness about the impact of simultaneous high-power device usage.
  10. Regular Maintenance: Keep your solar panels and inverter well-maintained. Regular cleaning and maintenance ensure optimal performance, allowing you to harness the maximum energy from your solar power system.

growatt 10kw /growatt 15kw

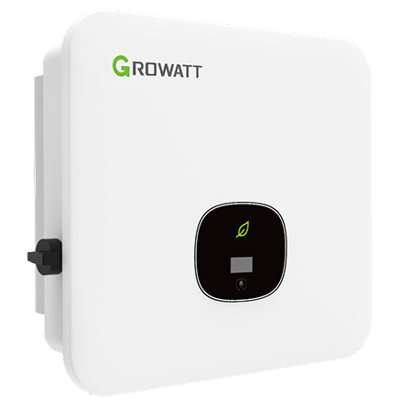

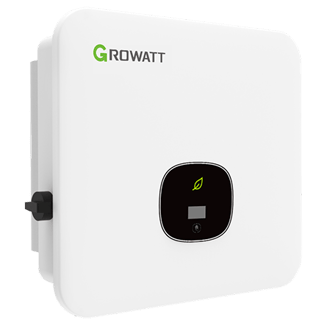

Basic specifications of inverter Growatt MOD 10K TL3-XH:

  • Max. recommended PV power (for module STC) [W] : 20000
  • Max. DC voltage : 1100
  • Nominal Voltage: 600
  • AC nominal power [W] : 10000
  • Max.charge power [W]: 10000
  • Max.discharge power [W]: 11000
  • Max. output current [A] : 16.7
  • Dimensions (W / H / D) [mm] : 425/387/178
  • Weight [kg] : 14
  • MAX. efficiency [%] : 98.6
  • Protection degree: IP66
  • Interfaces: RS232/RS485/CAN/USB
  • Cooling : Natural convection
  • Topology : Transformless

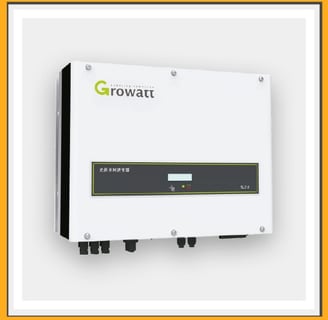

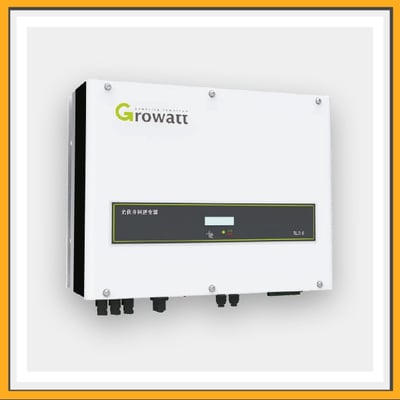

Basic specifications of inverter Growatt MID 15 TL3-X:

  • Max. recommended PV power (for module STC) [W] : 22500
  • Max. DC voltage : 1100
  • Nominal Voltage: 580
  • AC nominal power [W] : 15000
  • Max. output current [A] : 24.2
  • Dimensions (W / H / D) [mm] : 525/395/222
  • Weight [kg] : 23
  • MAX. efficiency [%] : 98.75
  • Protection degree: IP65
  • Interfaces: RS232/RS485/CAN/USB
  • Cooling : Smart air cooling
  • Topology : Transformless

growatt 25kw:

Specifications:

Model name: 25000TL3-S
Max Recommended PV Power:31250 W
Max DC Voltage:1000 V
Start Voltage:250 V
PV Voltage Range:200v-1000 V
Nominal Voltage:580 V
Rated AC Output Power: 25000 W
Max AC Apparent Power: 27700va
Max Output Current: 40.3 A
Max Efficiency:98.7%
Dimensions: 470 x 754 x 270 mm
Weight:48 kg
Environmental Protection rating:IP65
Display:LED + LCD

Growatt 30kw /growatt 40kw

Basic specifications of inverter Growatt MID 30 TL3-X:

  • Max. recommended PV power (for module STC) [W] : 45000
  • Max. DC voltage : 1100
  • Nominal Voltage: 600
  • AC nominal power [W] : 30000
  • Max. output current [A] : 50.5
  • Dimensions (W / H / D) [mm] : 580/435/230
  • Weight [kg] : 29.5
  • MAX. efficiency [%] : 98.8
  • Protection degree: IP66
  • Interfaces: RS232/RS485/CAN/USB
  • Cooling : Smart air cooling
  • Topology : Transformless

Basic specifications of inverter Growatt MID 40 TL3-X:

  • Max. recommended PV power (for module STC) [W] : 60000
  • Max. DC voltage : 1100
  • Nominal Voltage: 600
  • AC nominal power [W] : 40000
  • Max. output current [A] : 67.3
  • Dimensions (W / H / D) [mm] : 580/435/230
  • Weight [kg] : 37
  • MAX. efficiency [%] : 98.8
  • Protection degree: IP66
  • Interfaces: RS232/RS485/CAN/USB
  • Cooling : Smart air cooling
  • Topology : Transformless

Growatt 50kw:

Growatt:MAC50KTL3-XLV-50KW

DatasheetMAC 30KTL3-X LVMAC 50KTL3-X LV
Rated AC output power30000W50000W
Max. AC apparent power33300VA55500VA
AC nominal voltage230V/400V230V/400V
AC grid frequency50/60 Hz50/60 Hz

Growatt 60kw /growatt 70kw

Basic specifications of inverter Growatt MAX 60 KTL3 LV:

  • Max. recommended PV power (for module STC) [W] : 90000
  • Max. DC voltage : 11000
  • Nominal Voltage [V]: 585
  • AC nominal power [W] : 60000
  • Max. output current [A] : 96.6
  • Dimensions (W / H / D) [mm] : 860/600/300
  • Weight [kg] : 82
  • MAX. efficiency [%] : 98.8
  • Protection degree: IP65
  • Interfaces: RS232/RS485/CAN/USB
  • Cooling : Smart air cooling
  • Topology : Transformless

Basic specifications of inverter Growatt MAX 70 KTL3 LV:

  • Max. recommended PV power (for module STC) [W] : 120000
  • Max. DC voltage : 11000
  • Nominal Voltage [V]: 600
  • AC nominal power [W] : 70000
  • Max. output current [A] : 112.7
  • Dimensions (W / H / D) [mm] : 860/600/300
  • Weight [kg] : 86
  • MAX. efficiency [%] : 99
  • Protection degree: IP65
  • Interfaces: RS232/RS485/CAN/USB
  • Cooling : Smart air cooling
  • Topology : Transformless

Growatt 80kw:

Basic specifications of inverter Growatt MAX 80 KTL3 LV:

  • Max. recommended PV power (for module STC) [W] : 120000
  • Max. DC voltage : 11000
  • Nominal Voltage [V]: 600
  • AC nominal power [W] : 80000
  • Max. output current [A] : 128.8
  • Dimensions (W / H / D) [mm] : 860/600/300
  • Weight [kg] : 86
  • MAX. efficiency [%] : 99
  • Protection degree: IP65
  • Interfaces: RS232/RS485/CAN/USB
  • Cooling : Smart air cooling
  • Topology : Transformless

growatt 100kw:

GENERAL INFORMATION

  • Scalable system configuration, extend to 300kW ·
  • Support UPS function and black start ·
  • 100% unbalanced load when backup ·
  • 110% continuous AC overloading capacity ·
  • Support remote control of DG ·Multiple MPPTs input ·
  • Grid-support functions

    Basic specifications of inverter Growatt WIT 100KTL3-H-LV:

    • Max. recommended PV power (for module STC) [W] : 156000
    • Max. DC voltage : 1100
    • Nominal Voltage: 550
    • AC nominal power [W] : 100000
    • Max.charge power [W]: 113500
    • Max.discharge power [W]: 113500
    • Max. output current [A] : 181.8
    • Dimensions (W / H / D) [mm] : 820/1350/510
    • Weight [kg] : 160
    • MAX. efficiency [%] : 98.2
    • Protection degree: IP66
    • Interfaces: RS485/CAN/USB
    • Cooling : Smart air cooling
    • Topology : Transformless
